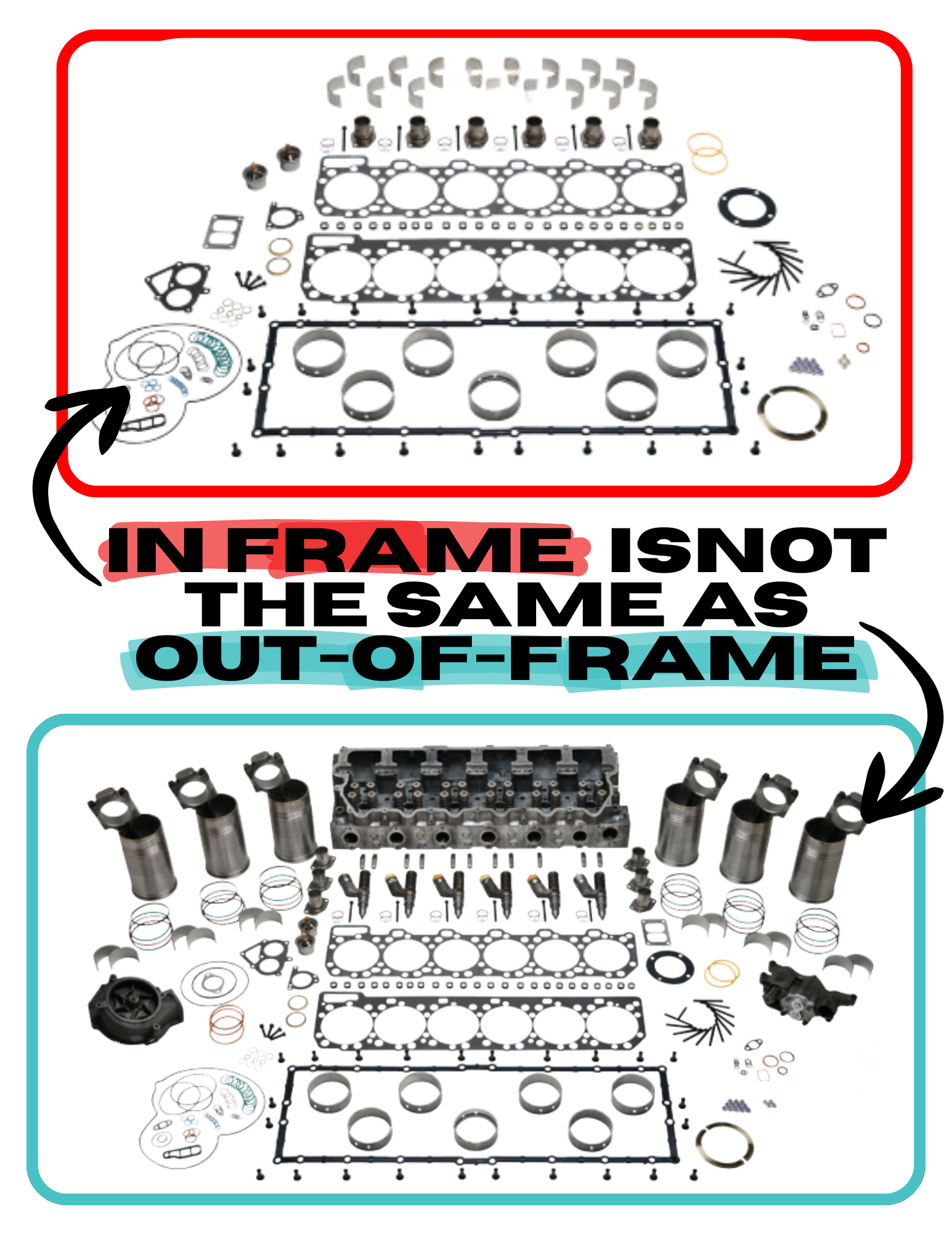

In-Frame vs Out-of-Frame Rebuilds for Heavy-Duty Diesel Engines: What Truckers Need to Know

Introduction

Every truck owner or fleet manager eventually faces a big decision: should you rebuild your diesel engine in-frame, or pull it out for a full overhaul?

That choice affects cost, downtime, reliability — and ultimately, how many more miles your truck can run without major trouble.

This guide walks you through what each type of rebuild means, when you’d pick one over the other, and how to decide based on your engine’s condition, mileage history, and operating budget.

What Is an In-Frame Rebuild?

Definition:
An in-frame rebuild (aka in-chassis) is when most of the internal wear-parts are replaced without removing the engine from the truck. You keep the block where it is and swap items like pistons, rings, liners, bearings, and top-end gaskets.

What’s Typically Replaced:

• Pistons & piston rings

• Cylinder liners / sleeves

• Connecting-rod & main bearings

• Head gasket and other upper gasket/seal set

• Possibly injector seals, valves, etc.

When It Makes Sense:

• Your oil pressure is still okay (not drastically low)

• There’s no evidence of lower-end (crank or block-journal) damage

• The engine has wear, compression loss, or uses oil, but the structure is still solid

• You want to extend life without the full cost and downtime of engine removal

Advantages:

• Lower labor cost (no engine hoist / removal)

• Less downtime — quicker turnaround

• Less risk of needing full machining / teardown

• Good for preventative rebuilds or medium mileage engines

Disadvantages:

• You don’t inspect or machine the crankshaft, block deck, or line-bore the lower end

• You may miss hidden damage (warped bores, cracks, out-of-spec journals)

• It may not last as long as a fully overhauled engine

What Is an Out-of-Frame Rebuild?

Definition:
An out-of-frame rebuild (also called out-of-chassis or complete overhaul) means you pull the engine out of the truck, mount it on a stand, and do a full teardown. You inspect, clean, and machine major internal and lower-end components.

What’s Included:
All the items from an in-frame rebuild, plus:

• Crankshaft inspection, grinding, or replacement

• Block machining (line-bore, deck surfacing, crack checks / magnaflux)

• Full gasket and seal set (upper and lower)

• Oil pump or cam bearings as needed

• Head resurfacing, component machining

When It’s Needed:

• You’re seeing metal in the oil filter or drain plug

• Oil pressure is low and there’s wear/problems in the lower end

• High-mileage engine (especially > ~700,000 miles or after multiple rebuilds)

• You want maximum reliability or resale value with a “like-new” rebuild

Advantages:

• Complete inspection of everything down to crank and block

• Opportunity to correct distortions or wear (boring, align-bore, crack repair)

• Potentially much longer lifespan after rebuild

• Better documented / quality rebuild

Disadvantages:

• Higher cost (parts + machining + labor to remove & reinstall)

• More downtime (engine removal, rebuilding, reinstalling)

• Higher upfront risk of discovering additional required repairs

Comparison Table

*Costs vary by model, region, parts availability, and shop rates.

How to Choose: Ask These Questions

1. Inspect Oil Pressure & Fluid Condition

   • Any sign of low pressure, metal flakes in oil or filter? That could point to lower-end problems.

2. Check Mileage & Service History

   • Have you done prior rebuilds? How many miles since last major engine service?

3. Estimate Your Acceptable Downtime & Budget

   • How many days can the truck be out of service? Can you absorb a higher upfront cost in exchange for longer reliability?

4. Request a Tear-Down Assessment

   • A good engine shop can drop oil pan or remove some components to inspect bearing journals, check clearances, and advise whether in-frame is safe or whether full engine removal is better.

5. Factor Your Resale or Asset-Life Goals

   • If you're planning long-term fleet use, or selling the vehicle later, an out-of-frame rebuild may give better value over time.

Real-World Example:

If you want, you could insert a case-study here — e.g.:

“A fleet operator with a Cummins X15 at ~600,000 miles opted for an in-frame rebuild. After 200,000 more miles, they had cooler oil pressure and saw minor metal traces. They then did a full out-of-frame rebuild at ~850,000 miles, which reset oil pressure and gave another 400,000+ mile extension.”
