In-Frame Overhaul Kit w/ Valve Cover Gasket | Detroit Series 60 14L DDEC V | AFA

Part Number ⚙️: 054790

Power Back in Every Stroke.

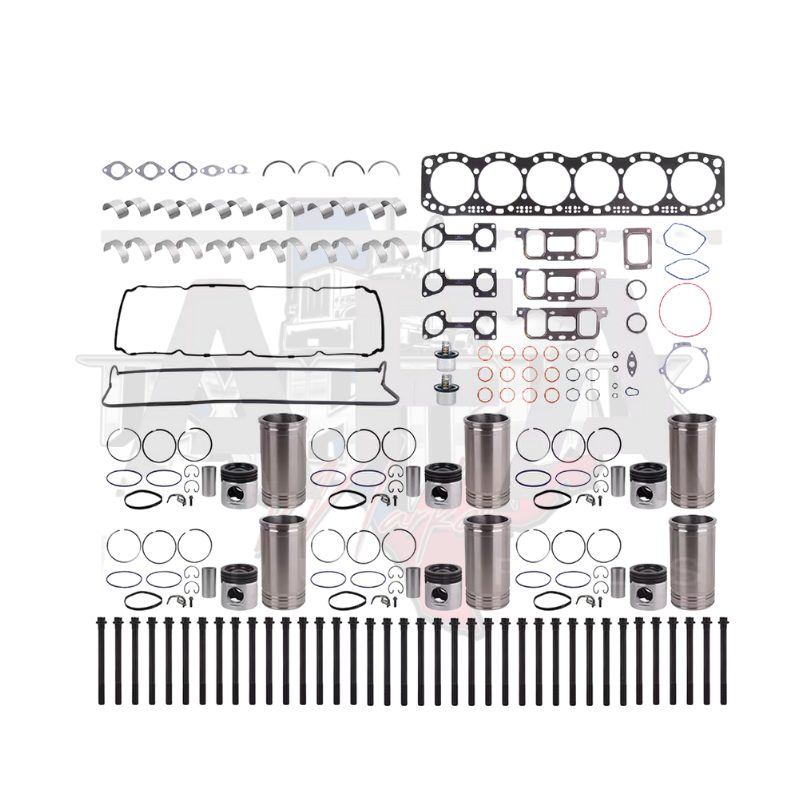

This AFA In-Frame Overhaul Kit is designed for Detroit Series 60 14L engines with DDEC V electronics. It’s a full rebuild solution—complete with the valve cover gasket, head bolts, piston kits, bearings, and every seal and gasket you’ll need. No surprises, just everything you need to get back on the road.

✅ Fits Detroit Series 60 14L DDEC V
✅ Includes valve cover gasket & head bolts
✅ Premium pistons, liners, rings, and bearings
✅ All gaskets, o-rings, and seals included
✅ AFA quality—built to OE specs or better

🧰 In-Frame Kit Includes:

• (1) Inframe Rebuild Kit – MCIF23532590

• (7) Camshaft Bearings – 8929690

• (1) Head Bolt Kit – MCB60HBK

  • (38) Cylinder Head Bolts – 23530768, 8929123

  • (38) Cylinder Head Bolt Washers – 8929328

• (1) Oil Pump Outlet Seal Ring – 23505891

• (6) Rod Bearing Shell Sets – 8929670, 8929082, 8929081

• (1) Thrust Shell Set – 2929083, 8929680

• (6) Main Bearing Shell Sets – 8929710, 8929553, 8929554

• (1) Oil Pump Inlet Seal Ring – 23505892

• (1) Oil Inlet Tube Gasket – 23505992

• (1) Oil Pressure Regulator Body Gasket – 5117269

• (2) Thrust Washers – 8929085

• (1) Oil Pan Gasket – 8929102

• (12) Spacers – 8929504, DDC8929504

• (6) Cylinder Kits – 23532561, 23533204

  • (6) 3.0mm Top Piston Ring Sets – 23525553, 23503747

  • (6) Top Piston Rings – 8929844

  • (6) Second Piston Rings – 8929845

  • (6) Oil Control Piston Rings – 23515500

• (6) Cylinder Liners – 23531502, 23531249

• (6) Piston Pin Kits – 23525168KT

  • (6) Cylinder Liner Seal Kits – 23531502KT

  • (6) Piston Pins – 23525168, DDC23525168

  • (12) Piston Pin Retainers – 23521781, DDC23521781

• (6) Piston Skirts – 23521802

• (6) 15:1 Piston Crowns – 23532465

• (1) Cylinder Head Gasket Set – 23532333, 23526852, 23501572

• (1) Turbo Exhaust Inlet Gasket – 8929529, 8923492

• (1) Turbo Oil Return Gasket – 8929285

• (3) Air Intake Gaskets – 23517875

• (1) Tach Drive Cover Gasket – 8929130

• (12) Injector External O-Rings – 5234699

• (6) Injector External O-Rings – 5234702

• (6) Lower Auxiliary Injector Seal Gaskets – 23511870

• (6) Injector Tube O-Ring Seals – 5104701, 5150575, 5160037

• (1) Cylinder Head Gasket – 23522588, 23522045, 23538406

• (2) Block To Gear Case Seals – 8929740

• (3) Exhaust Manifold Gaskets – 23533983

• (2) Thermostat Seals – 5118265, 5132155, 5130038

• (1) Seal – 23522975

• (1) Camshaft Thrust Plate Seal – 23521894

• (1) Camshaft Seal – 23521935

• (1) Camshaft Thrust Plate Seal Ring – 23528491

• (2) Seals – 23521111

#️⃣ Cross-Reference:

R23532577, MCIF23532554QT, S60106-017, 468-5100 STD, 23538418, A-MCIF23538418QCA, AMCIF23538418QCA, R23538418, S60117-017, S60117017

📞 Questions?

Call Texas Truck Market at 832-867-3345 to verify compatibility with your Detroit engine build.
