How to Replace the Front Main Seal on a CAT C15
E Edwin Matias

How to Replace the Front Main Seal on a CAT C15 šŸ”§

Jul 1, 2025

If you’re running aĀ CAT C15, you already know—it’s a tough motor. But like any diesel workhorse, it hits a point where seals wear out and oil starts leaking. One of the most common issues we see in the shop is a leaking front main seal, especially on engines pulled from wrecked trucks or undergoing a fresh install.

In today’s job walk-through, we’re digging into how to remove and replace the front main seal on a Caterpillar C15, covering everything from prep to final cleanup. This isn’t a basic how-to—it’s a behind-the-scenes look at what it’s like to do this job right, based on real work in the Texas Truck Market garage.


šŸ›» The Setup: Swapping in a C15 from a Wrecked Truck

Here’s the situation: we had a CAT C15 pulled from a wrecked truck. The engine it’s going into had a blown thrust washer bearing, so the customer brought this one in as a replacement. But since we already had everything out—radiator, fan, front-end accessories—it made sense to go the extra mile and:

āœ… Replace the front main seal
āœ… Install a new oil pan gasket
āœ… Check crankshaft endplay
āœ… Swap out a damaged peanut cover
āœ… Toss in a new water pump while we're in there

We’re doing this in our own shop with the truck disassembled, but you can still do this with the radiator in (especially on rigs like a 379 Pete or W900)—it’s just a bit tighter.


āš™ļø What Makes the CAT C15 Front Main Seal Tricky?

If you’ve done seals on a Cummins ISX or a Detroit 60 Series, you might be spoiled. Those use an installation tool to pull the seal out nice and clean.

Not CAT.
On the C15, you’ve got to pry it out manually. And not just anywhere—you’ve got to know where to pry or you’re going to ruin the aluminum front housing.

ā€œThese are probably my least favorite to do,ā€ – our in-house tech said. And if you’ve done it, you know why.


🧰 Tools You’ll Need:

  • Channel locks or seal puller

  • Flathead or pry bar (be gentle)

  • Brake cleaner (non-chlorinated)

  • Shop towels

  • Clean oil or engine assembly lube

  • Replacement front main seal (green seal for front, blue for rear)


🧼 Step-by-Step: Removing the Front Main Seal on a CAT C15

1. Clean the Area First

Even if you're going to remove the oil pan, it’s good practice to keep debris out of the engine. Spray around the seal and crankshaft with brake cleaner to loosen dirt and grease.

At Texas Truck Market, we use non-chlorinated brake cleaner—it evaporates fast and doesn’t leave behind any gunk if it hits the oil.


2. Pry Carefully (This is Key)

You’re going to need to start working the seal loose, but don’t pry against the aluminum housing—it will crack. Instead:

āœ… Pry against the crankshaft (it’s hardened steel)
āœ… Work slowly around the seal lip

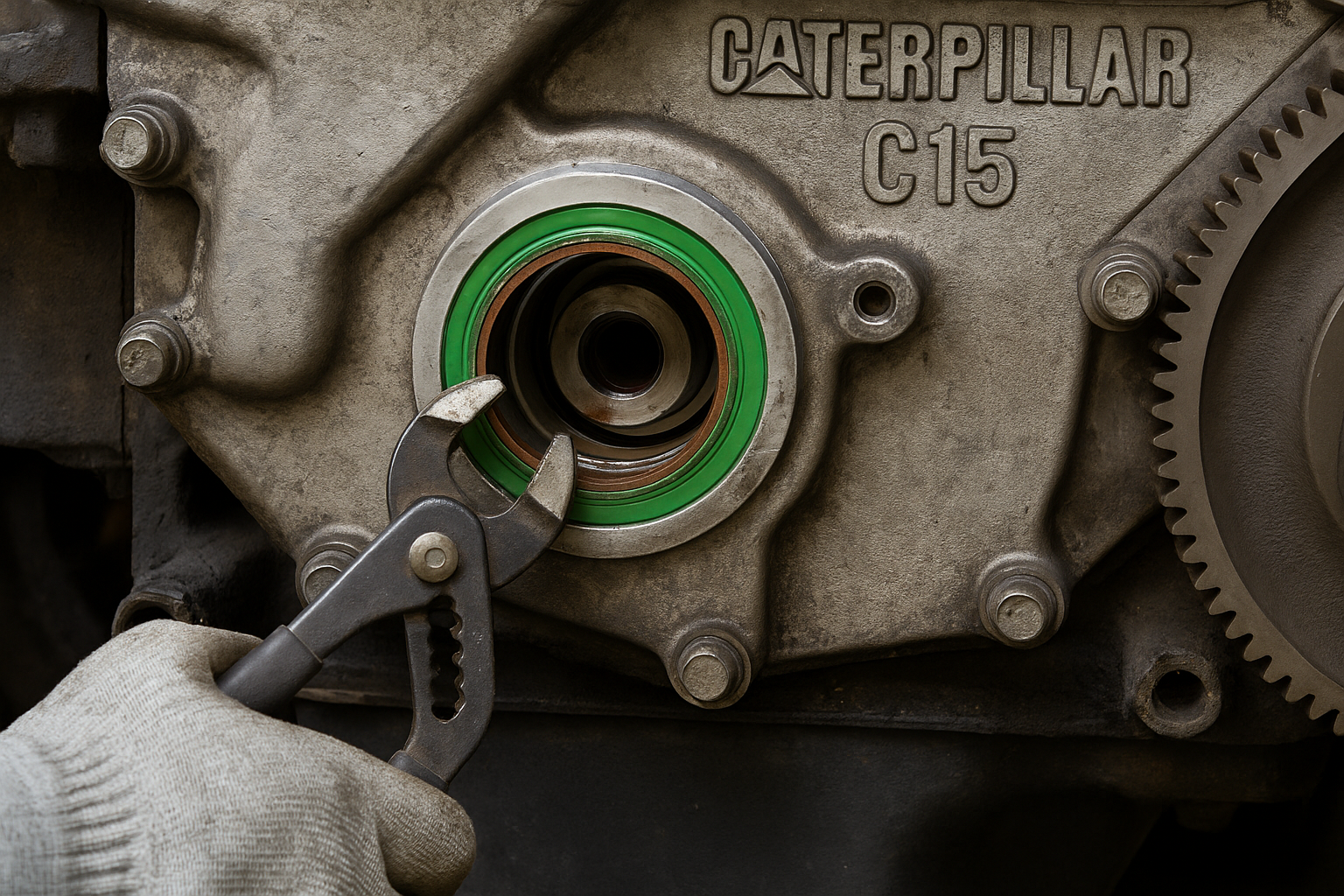

āœ… Once it starts moving, lock onto it with channel locks and pull side to side
āœ… Be patient—it comes out in two pieces

This is where most people mess up. That housing is soft and expensive. Take your time.


3. Remove the First Seal Half

Once the first part starts to give, keep pulling evenly. The front seal will separate into two halves—don’t panic, that’s how it’s supposed to work.


4. Clean the Sealing Surface

With the seal out:

  • Wipe down the crank with brake cleaner

  • Scrub away any leftover green seal material

  • Make sure no dirt drops into the engine if you’re not pulling the oil pan

  • Let everything dry before installing the new seal

"We’re doing the oil pan next, so we’ll clean any dirt that drops—but if you’re not, you’ve got to be surgical here."


šŸ”„ Front vs Rear Main Seal (Yes, They’re the Same Process)

A lot of folks ask this, so here’s your answer:

  • āœ… Front main seal = Green

  • āœ… Rear main seal = Blue

  • Installation and removal are the same. The only real difference is location.


🧪 Final Install Tips (From the Texas Shop Floor)

Before installing the new seal:

  • Oil the sealing surface lightly

  • Line up the seal evenly and press in carefully—don’t hammer it in sideways

  • Replace the peanut cover if it’s cracked or damaged

  • Reinstall bolts in proper sequence with thread locker if needed

  • If you're reusing the radiator and fan, check for proper clearance before full reassembly


šŸ Wrapping Up

Replacing a CAT C15 front main seal isn't the easiest job, but it’s totally doable—especially if you’ve got the radiator out and a few hours to spare. Just remember:

  • Don’t pry the aluminum

  • Pry against the crank

  • Take your time on cleanup

  • Use quality replacement parts (ask us if you need a kit)
