Why You Can’t Use ACERT Injectors on Non-ACERT CAT Engines

Sep 29, 2025

Why You Can’t Use ACERT Injectors on Non-ACERT CAT Engines

Introduction

This blog will talk about the difference between the injectors that come in a CAT C15 Acert and those that are in a non-Acert C15. And the reason why they are not interchangchable.




The Key Difference: Spray Angle

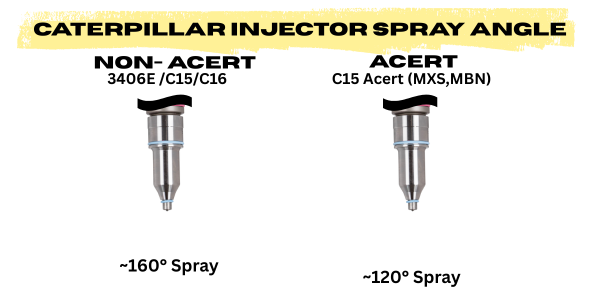

  • Non-ACERT CAT engines (3406E, early C15, C16) use injectors with a spray angle of about 160°.

  • ACERT CAT engines (later C15 ACERT models) are designed with injectors that have a 130° spray angle.

This may not sound like a big difference, but the spray angle determines how fuel is distributed inside the combustion chamber.






Why Spray Angle Matters

Think of the spray angle as how a garden hose nozzle spreads diesel:

  • A wide angle (160°) ensures fuel is evenly dispersed in the larger combustion chamber of non-ACERT engines.

  • A narrower angle (120°) is engineered specifically for the different piston bowl and combustion design of ACERT engines.

If you install ACERT injectors into a non-ACERT engine:

  • Fuel won’t hit the right area of the piston bowl.

  • This can cause poor combustion, excessive heat, fuel wash on the cylinder walls, and eventually serious internal damage like scored liners or burned pistons.






The Bottom Line

👉 ACERT and non-ACERT injectors are not interchangeable.
Even though the part numbers might look similar and the injectors may physically fit, the difference in spray angle (160° vs 120°) makes them incompatible.

Using the wrong injector type can result in costly engine failures. Always match injectors to your specific engine model and build date — and if you’re unsure, consult your parts supplier or technician.
