Airtec Performance Turbo(550-700 HP) | 80mm | 1.32 A/R | T6 | S410SX | For CAT C16/C15/3406E/3406B

SKU 054497
$2,295.00
$2,295.00
?
Please enter your engine serial number or check the box to bypass

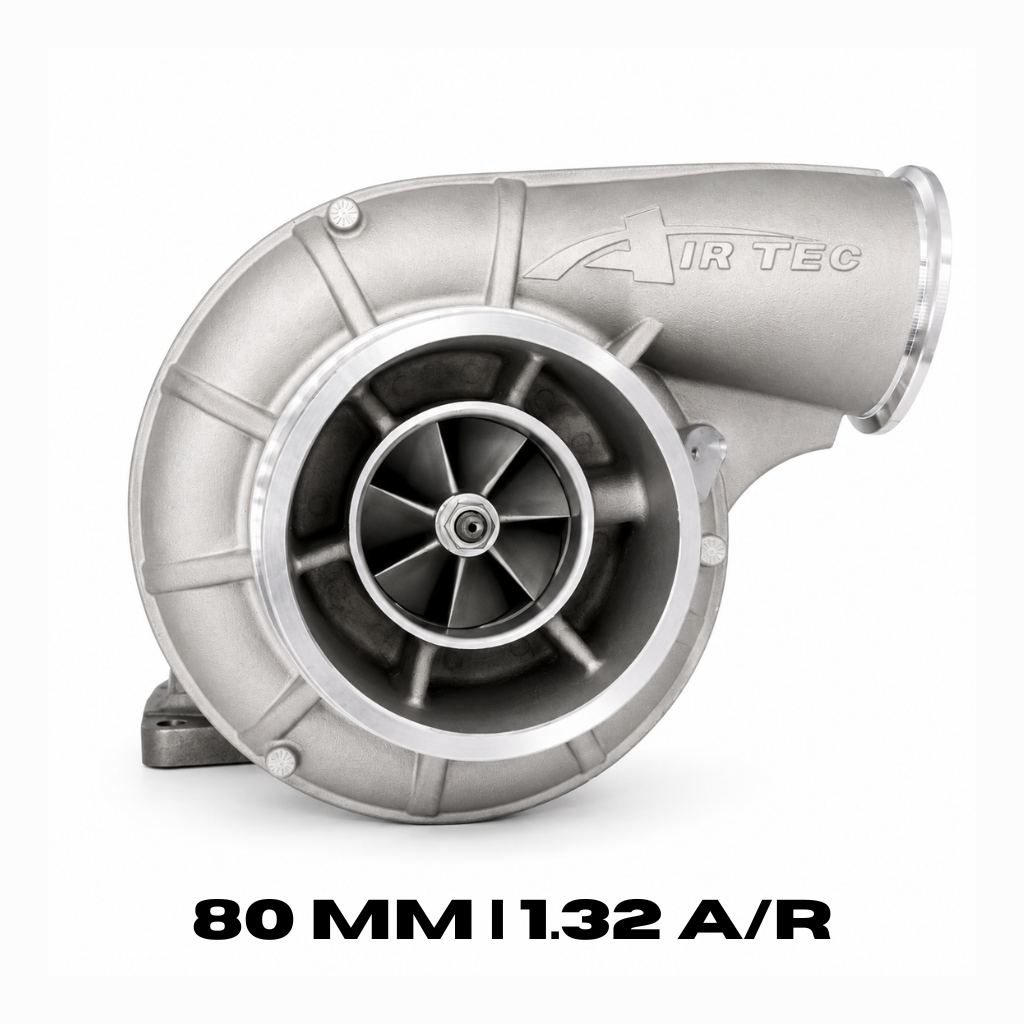

Air-Tec Performance Turbo — 80mm | 1.32 A/R | T6 | S410SX — CAT C16 / C15 / 3406E

Available For: Caterpillar C16 / C15 / 3406E

This is a high-performance turbo from Air-Tec Innovation, designed for CAT applications. This turbo is a direct replacement 80mm for the Cat C15 3406B-E models as well as C15, with an estimated operating horsepower range of 550–700 HP.

Air-Tec CAT turbos feature a Custom H80 BIG BORE shaft and bearings with an exclusive custom 360 thrust bearing, and the compressor inducer is machined with a radius for optimum airflow. This turbo has shown great results in applications such as the C-15 (6NZ) at 800+ HP.

Specifications

  • V-Band Compressor Cover
  • 80mm Compressor Wheel
  • 96mm Turbine Wheel
  • H80 BIG BORE Shaft and Bearings
  • HD 360-Degree Thrust Bearing
  • Twin Hydrodynamic Journal Bearings
  • T6 Twin Scroll 1.45 A/R Turbine Housing
  • Supporting HP Range: 550–750 HP

Warranty: AirTec's turbos carry a 12-month warranty for manufacturer defects.
