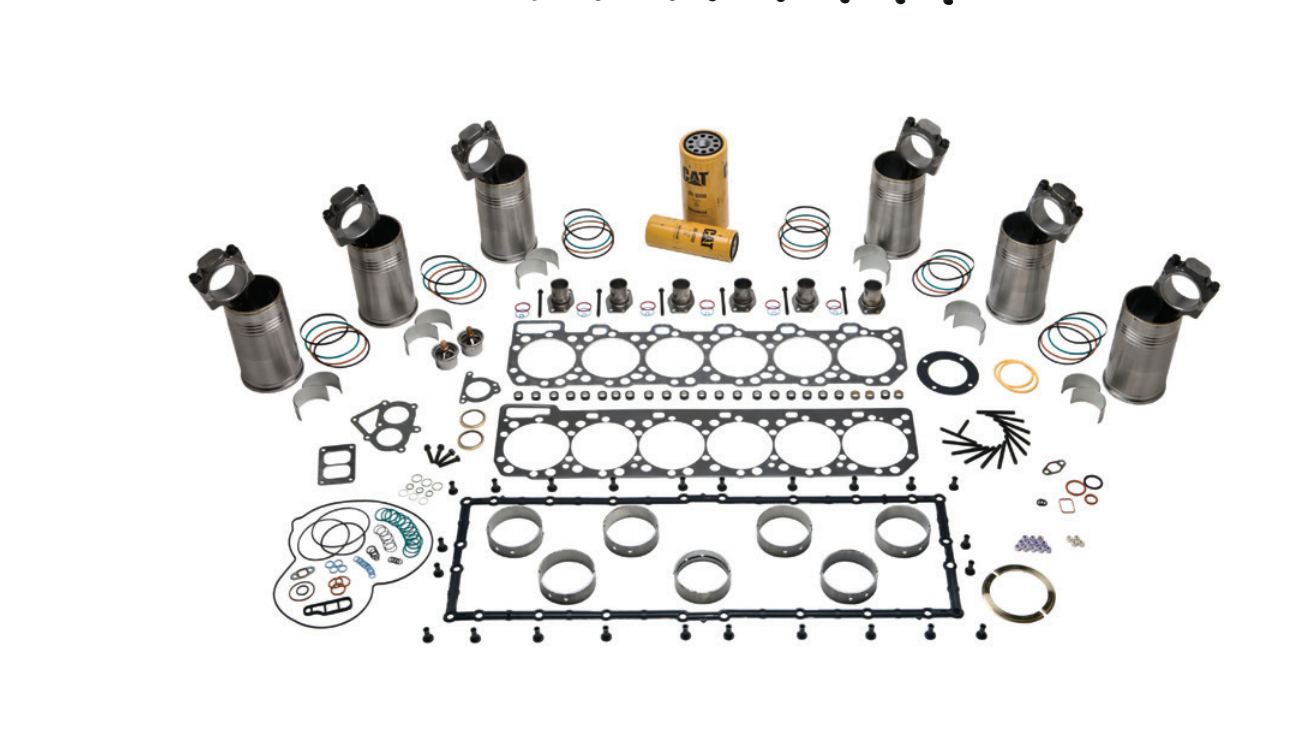

This inframe kit fits any CAT C15 with an engine serial number starting with 6NZ or 9NZ, covering the 435–550 HP range. This is a Bronze-level inframe kit upgraded with Cat Reman Cylinder Pack Assemblies — rods, pistons, rings, and liners come preassembled, saving 4 to 6 hours of labor compared to a standard silver kit. All critical components are included for a professional inframe without removing the engine block.
The GOLD Kit Includes:
- Rod & main bearing set
- Head gasket set
- Front cover gasket
- Oil pan gasket
- Kit gasket (single fuel injector)
- Exhaust manifold sleeves, high-temp studs & locking nuts
- Oil pan isolator assemblies
- Thermostats
- Advanced efficiency oil & fuel filters
- Liners, piston body skirts, rings, wrist pins & liner seals
- Piston crowns
- Connecting rods
CORE PRICE: $2,236.10
| Part Number | Description | Quantity |
|---|---|---|
| 0R-8915 | CAT REMAN CYLINDER PACK | 6 |
| 328-5573 | 97.20MM OUTER DIAMETER CONNECTING ROD BEARING | 6 |
| 243-6718 | CRANKSHAFT MAIN BEARING KIT | 1 |
| 345-7568 | OIL PAN & OIL PUMP GASKETS KIT | 1 |
| 345-7238 | CYLINDER HEAD INSTALL KIT | 1 |
| 248-1394 | SINGLE FUEL INJECTOR INSTALL GASKET KIT | 6 |
| 281-8261 | EXHAUST PORT SLEEVE | 6 |
| 571-9902 | KIT - CYLINDER HEAD GASKET | 1 |
| 242-9537 | ISOLATION SEAL GASKET | 3 |
| 247-7133 | WATER TEMPERATURE REGULATOR | 2 |
| 1R-1808 | ENGINE OIL FILTER | 1 |
| 1R-0749 | SECONDARY FUEL FILTER | 1 |
| 2U-1493 | 15.70MM INNER DIAMETER RING SEAL | 3 |
| 2U-1492 | 20.32MM INNER DIAMETER SEAL | 3 |
| 143-6642 | ENGINE BRAKE UPPER RING SEAL | 3 |
| 106-1792 | 100MM LONG TAPER LOCK STEEL STUD | 12 |
| 106-1793 | 60MM LENGTH TAPERED STUD | 1 |
| 8S-9191 | 3/8"-16 X 4" HEX HEAD BOLT | 6 |
| 391-2167 | 3/8"-16 HEX FLANGE NUT | 12 |
| 5H-7704 | 94.61MM INNER DIAMETER CATALYST SEAL O-RING | 2 |
| 139-3550 | 1.6MM THICK REGULATOR HOUSING GASKET | 1 |
| 142-2329 | 11.70MM THICK DRAINBACK OIL SEAL | 1 |
| 160-7271 | 6.36MM THICK PRESS SEAL | 1 |
| 5E-8771 | 120.32MM INNER DIAMETER O-RING SEAL | 1 |
| 6X-7430 | 1.4 X 25.63MM 90A FKM O-RING | 6 |
| 6V-5050 | 2.95 X 23.47MM 75A FKM O-RING | 1 |
| 2N-2766 | 3/8"-16 CONE LOCK NUT | 4 |
| 3E-6772 | 17.90MM INNER DIAMETER WATER SEAL | 24 |
| 272-2583 | 2.62 X 53.64MM 75A FKM O-RING | 1 |
| 114-2687 | 5.33 X 23.16MM 78A HNBR O-RING | 1 |
| 6V-3251 | 2.46 X 19.18MM 70A EPDM O-RING | 1 |
| 117-8801 | 2.62 X 126.67MM 75A FKM O-RING | 1 |
| 6V-5048 | 1.83 X 8.92MM 75A FKM O-RING | 1 |
| 5P-0840 | 3.53 X 12.29MM 75A FKM O-RING | 2 |
| 214-7568 | STOR O-RING SEAL (SAE 9/16-18) | 13 |
| 227-1204 | 0.2MM THICK ENGINE CYLINDER BLOCK GASKET | 1 |
| 103-6045 | MULTIPLE CAM ACCESS COVER RUBBER O-RING SEAL | 1 |
| 198-6068 | 1.71MM THICKNESS EDGE BONDED SEAL GASKET | 1 |
| 112-3102 | 15.54MM INSIDE DIAMETER SEAL-O-RING | 2 |
| 166-2904 | 2.62 X 34.59MM 80A TFEP O-RING | 12 |
| 4N-1156 | 1.2MM THICK RADIATOR WATER LINES GASKET | 1 |
| 35-9643 | ROTATING SHAFT LIP TYPE SEAL | 2 |
| 2N-2765 | 3/8"-16 X 1 3/4" HEX FLANGE HEAD BOLT | 4 |
| 8L-2786 | 2.21 X 16.36MM 75A FKM O-RING | 4 |
| 8L-2777 | 2.62 X 10.77MM 75A FKM O-RING | 4 |
| 6V-1197 | 98.02MM INNER DIAMETER O-RING SEAL | 1 |
| 126-2702 | EDGE BONDED SEAL GASKET | 1 |
| 6V-0128 | 46.50MM LONG CONNECTOR SEAL | 1 |
| 5P-5678 | ENGINE RIBBON SEAL | 3 |
| 3K-0360 | 2.21 X 16.36MM 90A NBR O-RING | 1 |
No cross reference information available for this product.
