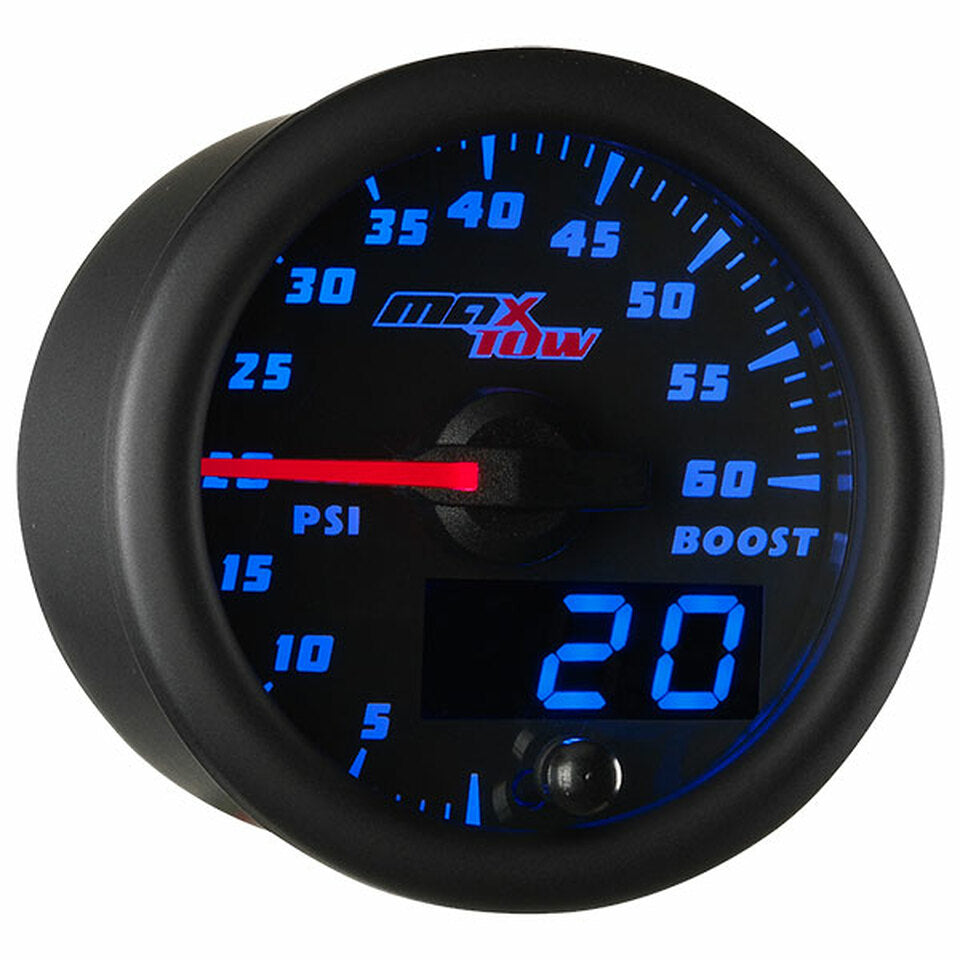

MaxTow’s Double Vision™ Series 60 PSI Boost Gauge is an electronically driven diesel truck gauge that will read and display your truck’s boost pressure levels from 0 to 60 PSI with the included electronic boost sensor, giving you unrivaled accuracy while eliminating the need for running a lengthy vacuum hose and t-fitting through the firewall to the gauge.
You asked for it and we listened! MaxTow’s Black & Blue Double Vision™ Gauge Series features a black gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2 1/16” (52mm) gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This diesel boost gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!

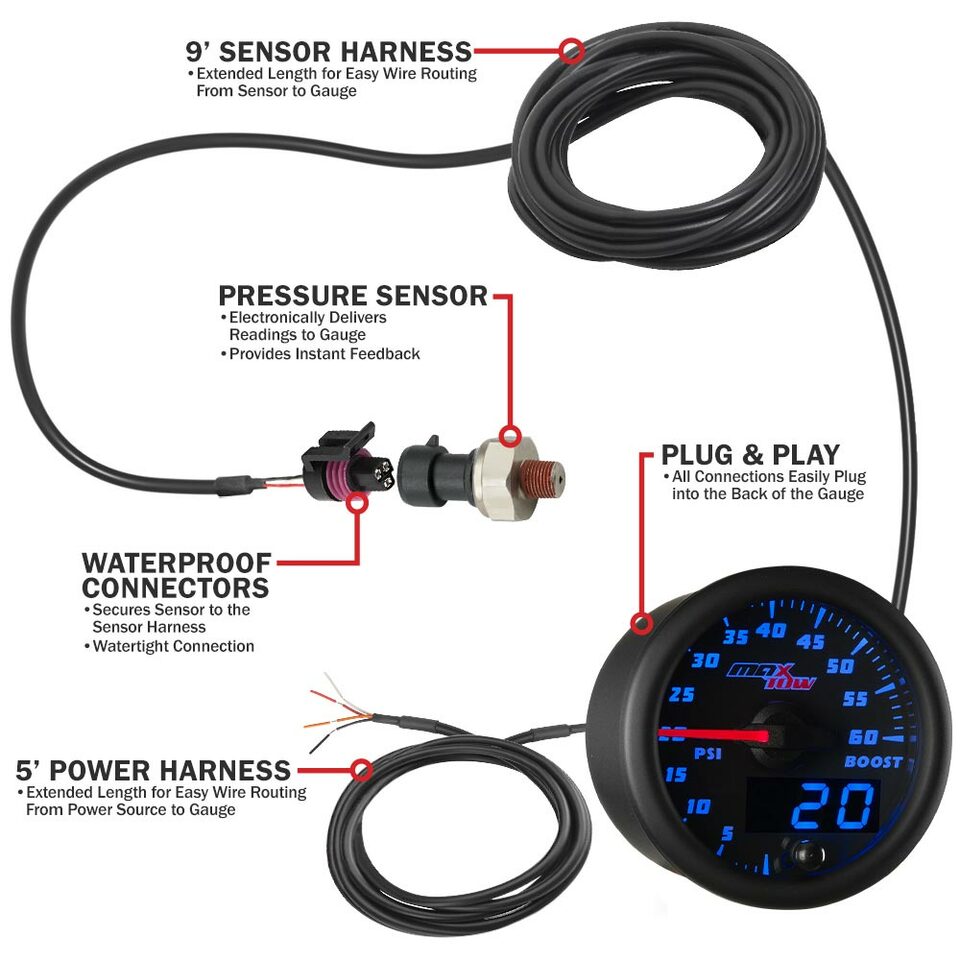

Every MaxTow diesel boost gauge features extended wire harnesses for both power (5') and boost pressure sensor (9') connections, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every diesel boost pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™!
Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.
- 2 1/16" (52mm) Black Face Gauge with a Magnified Lens
- Boost Reading from 0 to 60 PSI
- Electronic Boost Pressure Sensor with 1/8-27 NPT Threads
- Double Vision Display Feature with Analog and Digital Readings
- Blue LED Through Dial Lighting with a Red Illuminated Needle
- Daytime Dimming Mode with 3 Customizable Brightness Settings
- Nighttime Dimming Mode with 3 Customizable Brightness Settings
- 9' Boost Pressure Sensor Wire
- 5' Power Wire
- Gauge Depth Measures 1 5/16"
- Mounting Hardware
- Installation Instructions
- One Year Limited Warranty
- Free Lifetime Technical Support
