2882112 | Cummins ISX Turbo | 2010-2017 | High HP | 5456845

SKU 056322
$1,986.50
$1,986.50
?
Please enter your engine serial number or check the box to bypass

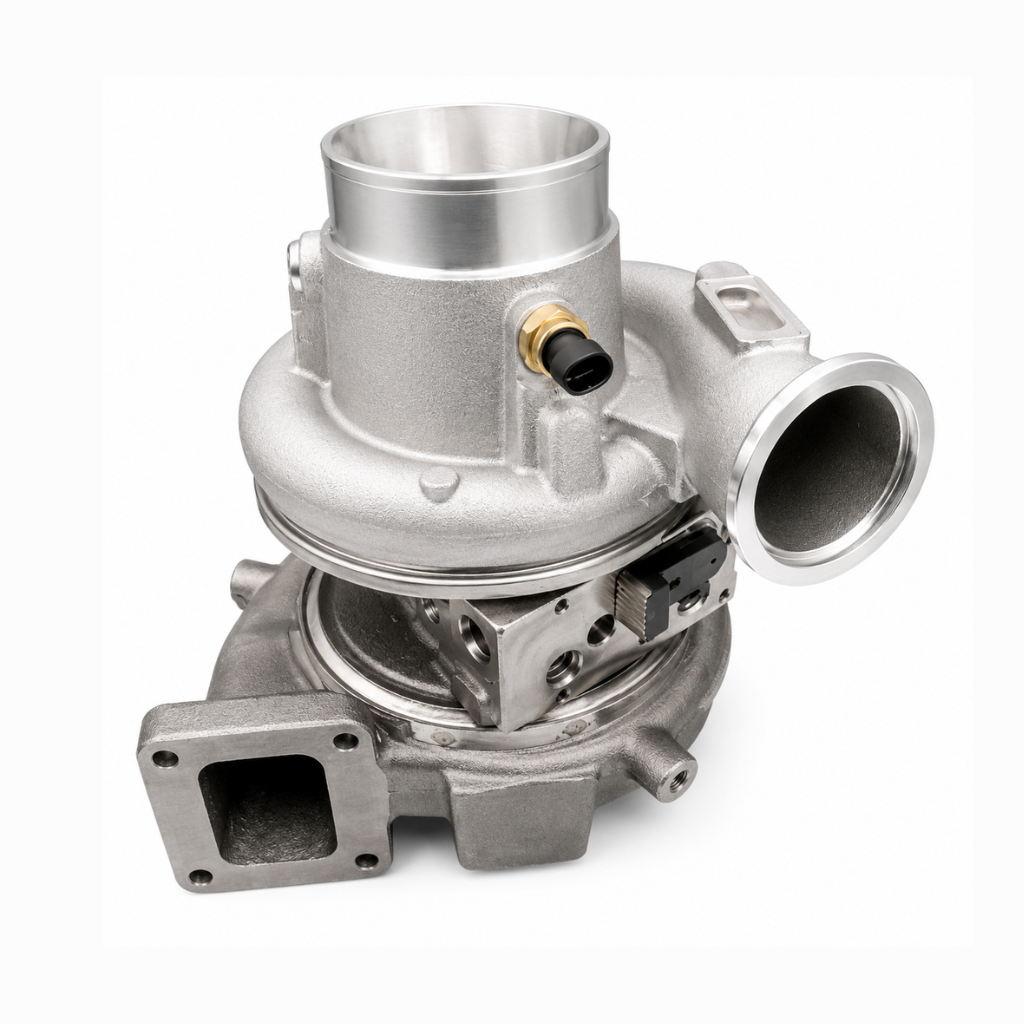

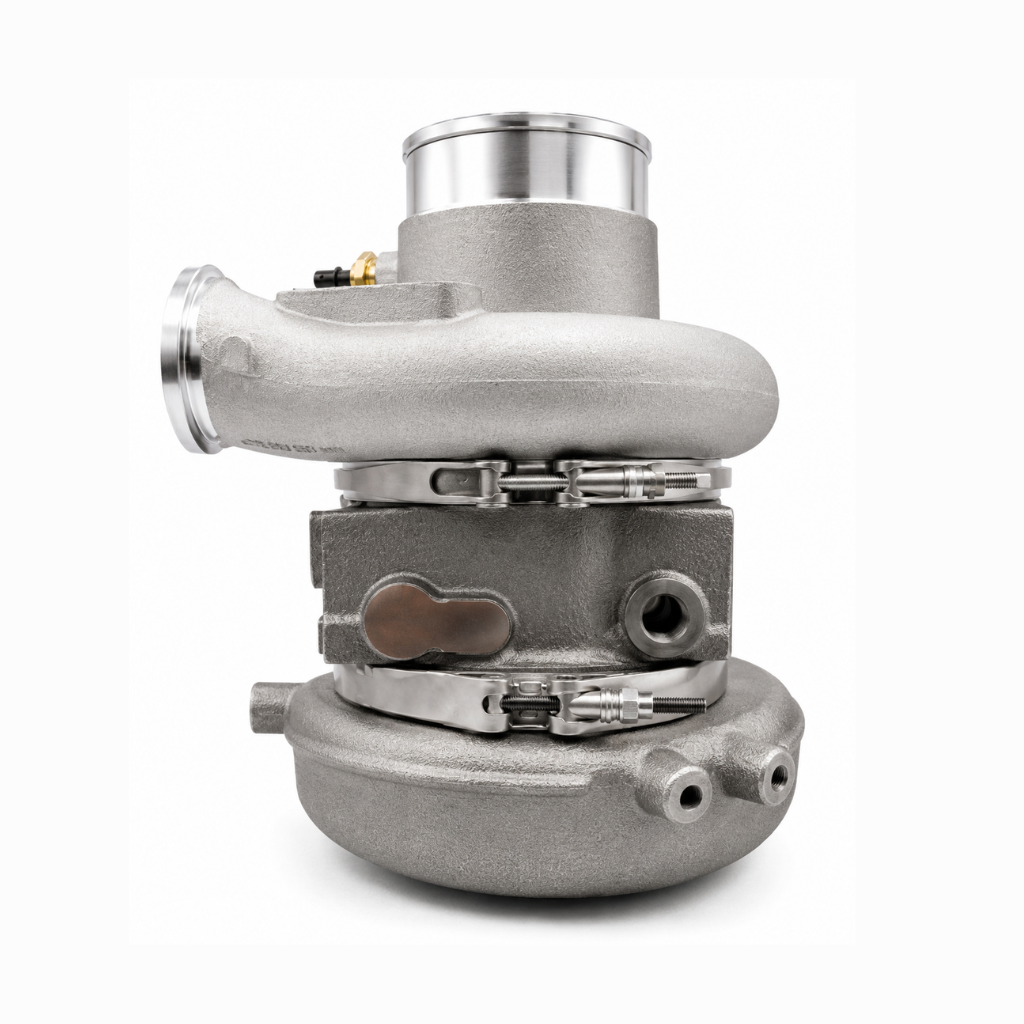

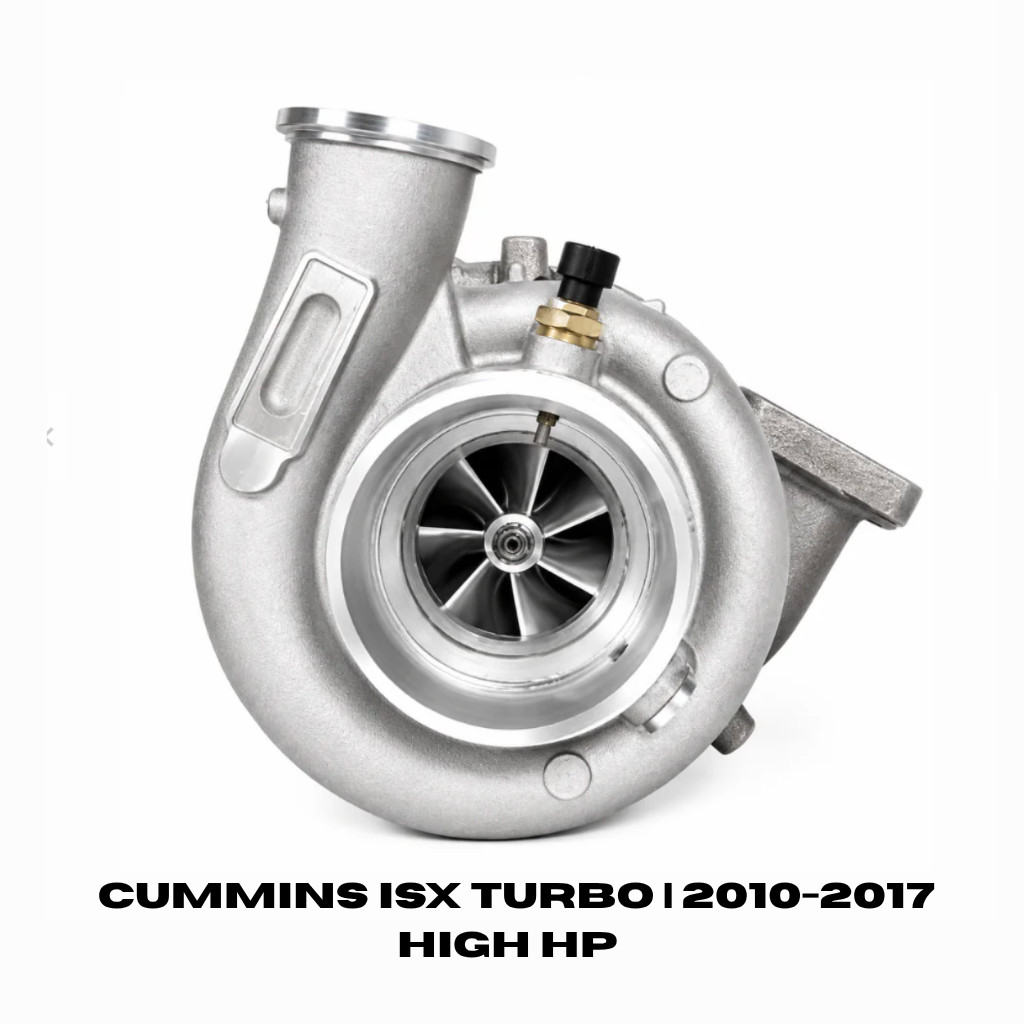

Cummins ISX Short Turbo — CM2250 / CM2350 (2010–2013) | High HP (500+)

Available For: Cummins ISX CM2250 / CM2350 — single-cam ISX (2011–2017), 500+ HP

High-HP short turbo for the Cummins ISX — a new (not remanufactured) replacement for CM2250 and CM2350 engines. Built for 500+ HP applications, it runs a larger 67 mm compressor wheel than the low-HP unit for the extra airflow that bigger power levels demand.

It fits single-cam ISX engines across 2011–2017, and there's no core charge — nothing to send back.

Please note: This is the Short Turbo configuration — supplied as the turbo only, no actuator included. Call us if you need a complete unit with an actuator.

Component Specifications

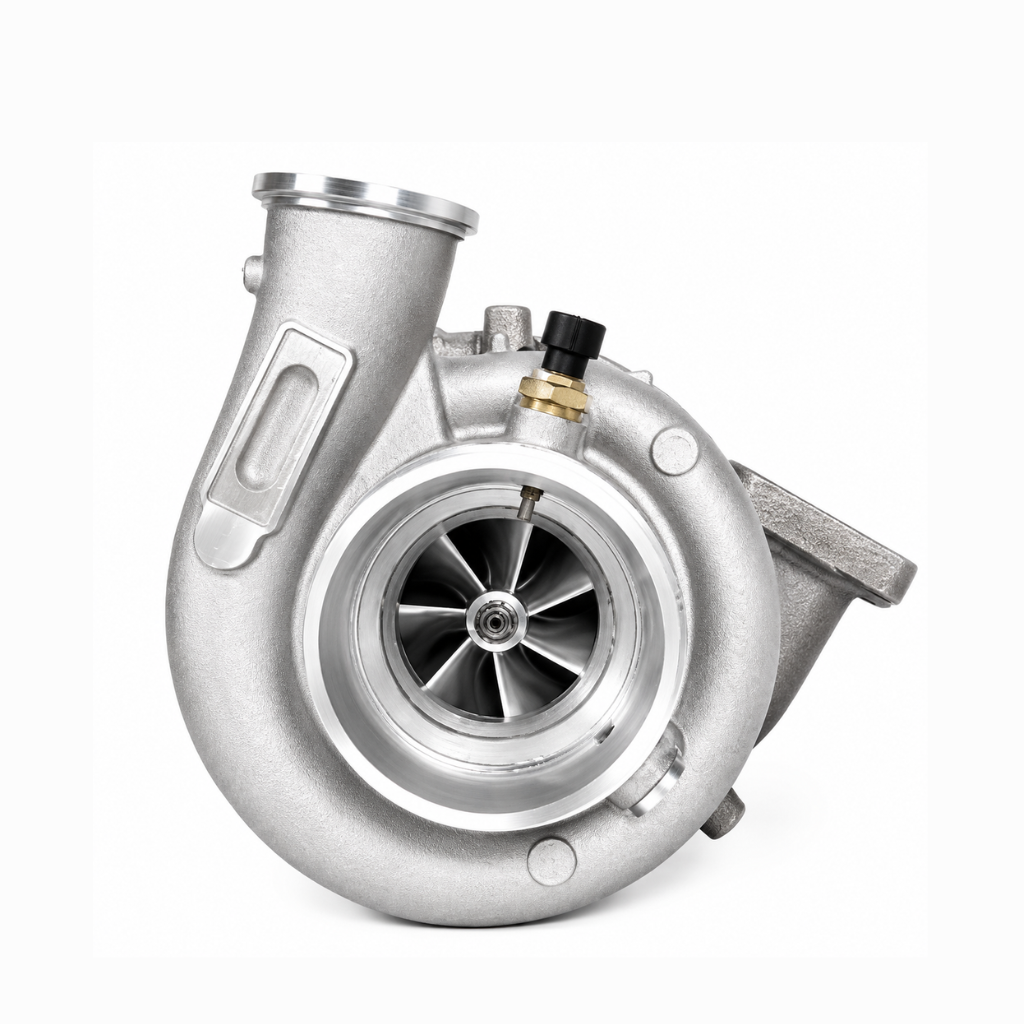

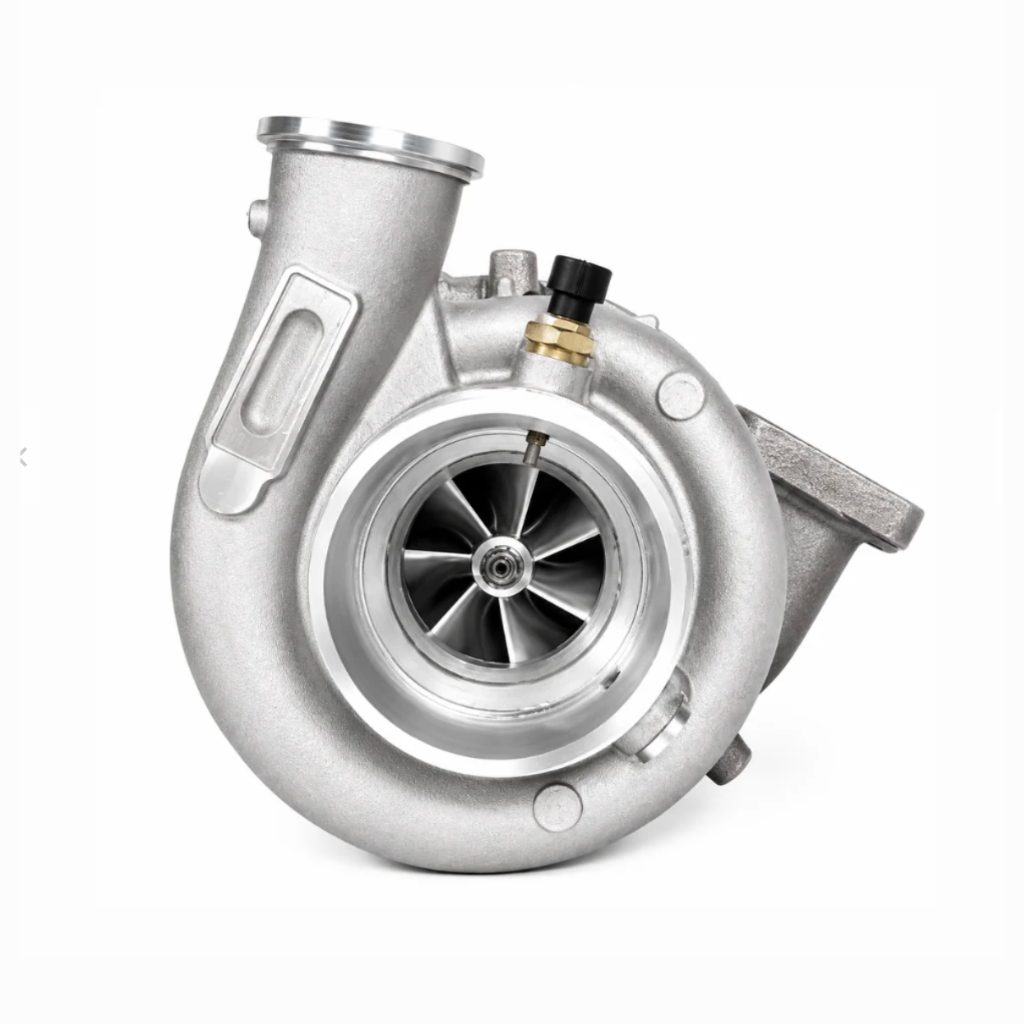

Compressor Wheel — Inducer 67 mm
Compressor Wheel — Exducer 93 mm
Blade Configuration 7 + 7
Compressor Wheel Type Billet

OEM / Aftermarket Cross-Reference

2843821, 2882015, 2882015NX, 2882015RX, 2882112, 288211200, 288211200HX, 288211200NX, 288211200RX, 2882112H, 2882112NX, 2882112RX, 3769054, 3769055, 3769056, 3769058, 3769059, 3769061, 3773488, 3773489, 3773491, 3773492, 3773493, 3773495, 3792570, 3792571, 3792576, 379257600, 379257600H, 3792576H, 3792577, 3792583, 379258300H, 3792583H, 3795122, 3795142, 3795143, 5350404, 5350411, 5350411RX, 5350499, 5350501, 5350501H, 5359590, 5359595, 5359609, 5359609NX, 5359609RX, 5456845, 5458503, 5458503NX, 5458503RX

Questions about fitment or availability? Call us at 832-867-3345
