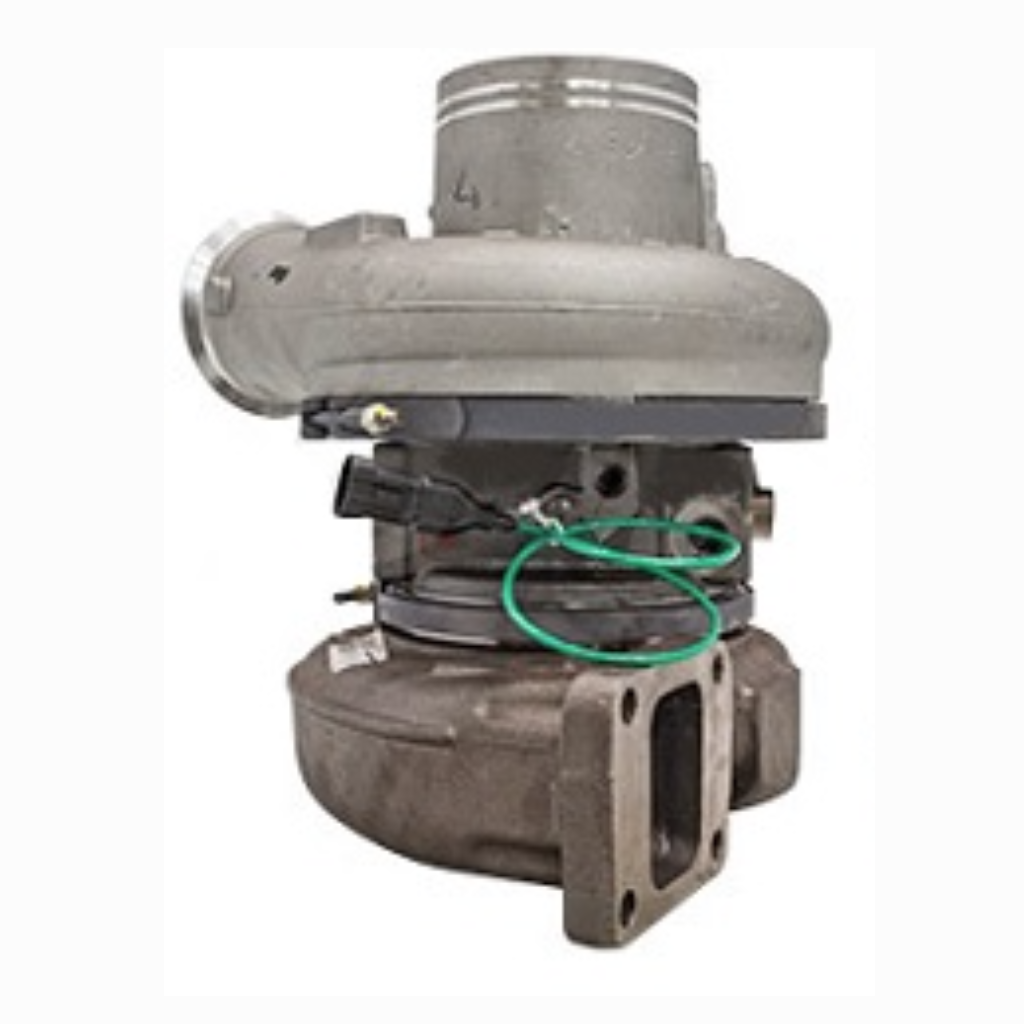

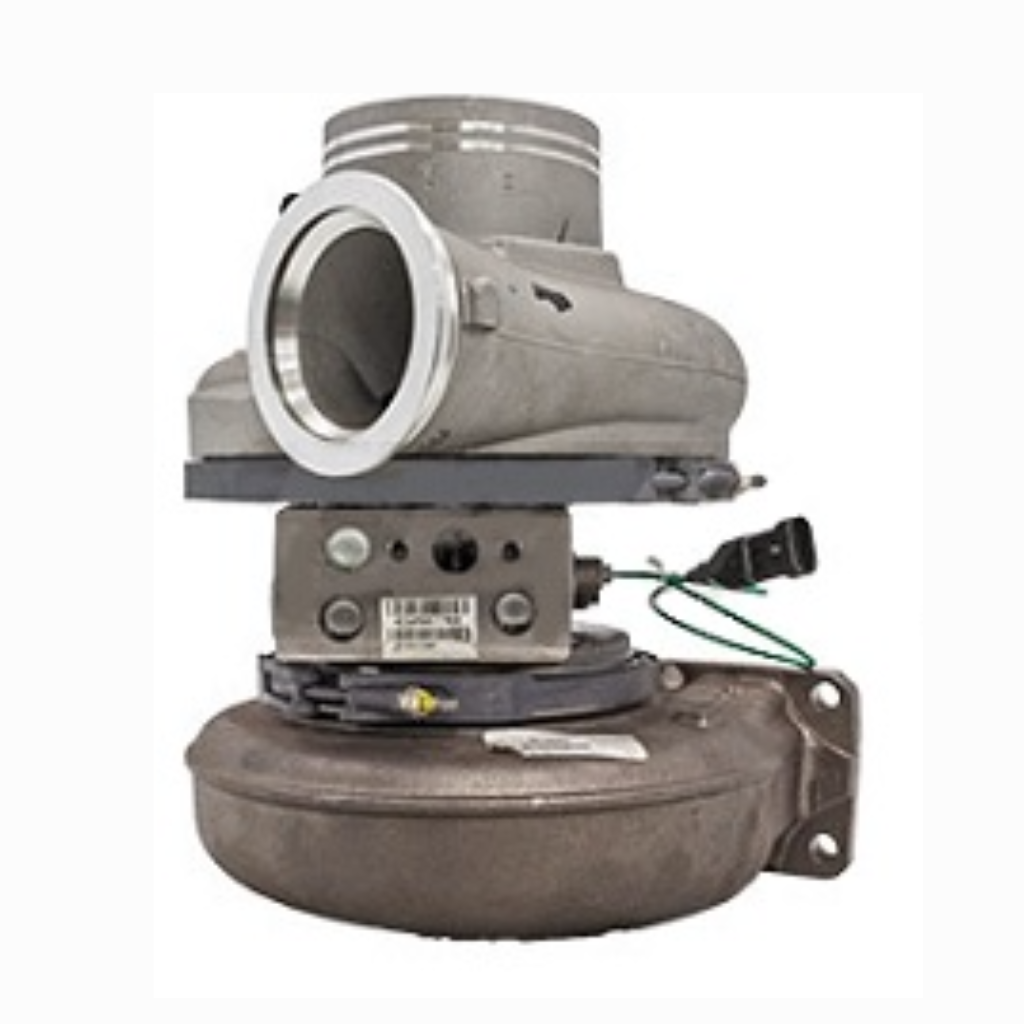

Holset HE500VG / HE561VE Turbocharger with Actuator
Available For: Cummins ISX07, ISX1, ISX-EGR, ISX15, and ISL Engines
This is a Holset HE500VG / HE561VE variable-geometry turbocharger built for Cummins ISX and ISL applications, including Cummins Coach, Transit Bus, and various other platforms. It features a VGT (Variable Geometry Turbine) housing, a water-cooled bearing housing, a 12-blade turbine wheel, and an 8+8 blade superback compressor wheel. Primary Cummins part number 3774613; superseding numerous prior versions across the ISX platform.
Component Specifications
| Manufacturer | Holset |
| Turbo Model | HE500VG, HE561VE |
| Engine Models | ISX07, ISX1, ISX-EGR, ISX15, ISL (Cummins) |
| Fuel | Diesel |
| Turbine Housing | VGT (Variable Geometry) |
| Compressor Housing Angle (α) | 132° |
| Turbine Housing Angle (β) | 155° |
| Bearing Housing | 4042072 (Water Cooled) |
| Turbine Wheel | 4038560 (Ind. 72 mm, Exd. 86 mm, 12 Blades) |
| Compressor Wheel | 4043068 (Ind. 70 mm, Exd. 111.48 mm, 8+8 Blades, Superback) |
| Nozzle Ring | 3779114 |
| Major Repair Kit | 1154500756 |
| Electronic Actuator Kit | 4034289 (12 Volts) |
| Speed Sensor | 4032068 |
| Temperature Sensor | 4088832 |
| Oil Outlet Gasket | 3101268 |
| Turbine Inlet Gasket | 3102314 |
OEM Cross-Reference Numbers
2080039R, 2836358, 2836359, 2838008, 2838009, 2840523, 2840524, 2840525, 2843356, 2843359, 2881786, 2881786NX, 2881786RX, 2881988RX, 2881998, 2881998NX, 2881998RX, 34042417, 3767616, 3767623, 3767631, 3767632, 3769880, 3769882, 3774602, 3774613, 3774627, 3774641, 3776665, 3776666, 3776669, 3781160, 4042417, 4045019, 4045032, 4045035, 4048260, 4048261, 4309077, 430907700, 430907700HX, 4309077NX, 4309077RX, 4309077RXCUM, 4955426, 4955903, 4956011, 4956011NX, 5350510, 5350895, 535089500HX, 5350895H, 5350895HX, 5350895HXCTR, 5350895HXR, 535540400H, 5355404H, 5456817, 5456817H, 5456817HX, 5457298, 5457298RX, R633401JT, T6334-01
