Description

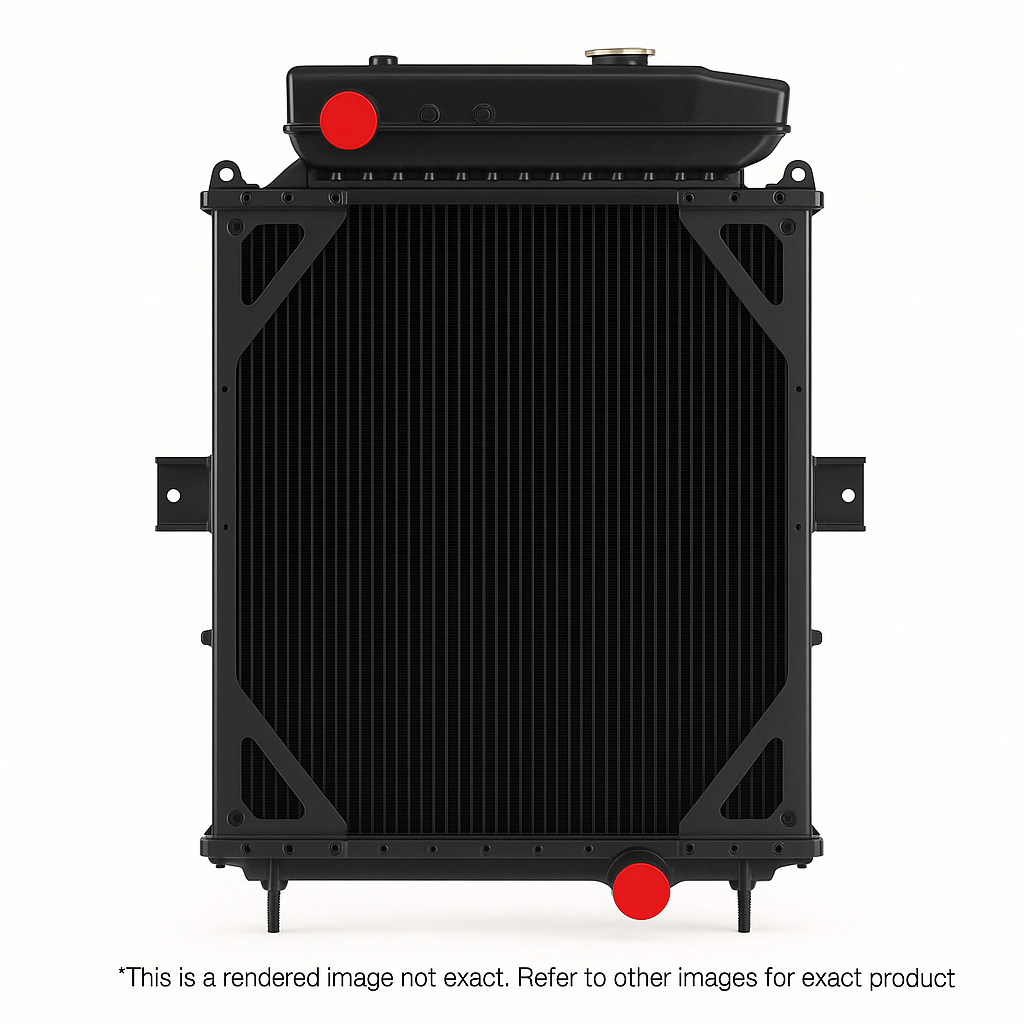

Steel Tank/ Copper Brass 4 Row (Extra High Efficiency - Dimpled Tubes) Core Radiator - With Frame - With Surge Tank.
Warranty
North American wide coverage.
Dura-Lite's warranty is not prorated and warrants the original vehicle installation for a period of 2 (two) years from the date of installation (unlimited mileage) that its Radiators (the "Radiator") will remain free from defects in material and workmanship under normal on-highway operating conditions.
All products are tested to be 100% leak free before they leave the manufacturing facility.
Vehicle Make/Model/Year:
• KENWORTH T2000 1999 - 2006
• KENWORTH T300 1996 - 1999
• KENWORTH T600 1988 - 2007
• KENWORTH T600A 1988 - 2007
• KENWORTH T700 1988 - 2007
• KENWORTH T800 1988 - 2007
• KENWORTH W900 1988 - 2007
Product Specifications
Core Dimension - Header to Header: 40" [1016mm]
Core Dimension - Over Sidepieces: 28 7/16" [722mm]
Inlet Connection OD Dimension: 2 1/2" [64mm]
Inlet Connection Note: OD
Outlet Connection OD Dimension: 3" [76mm]
