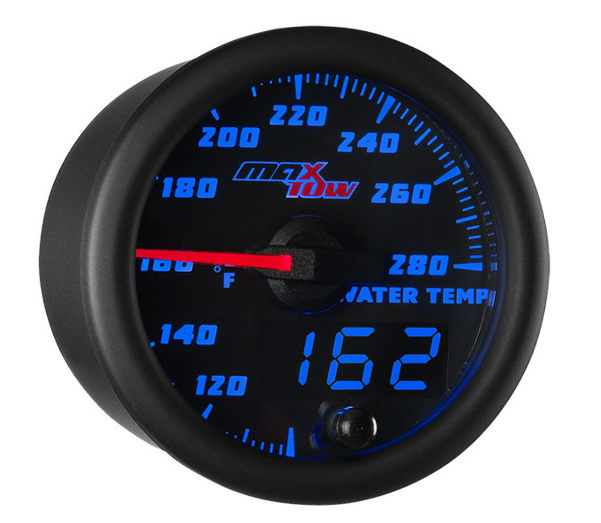

Water Temperature Gauge is an electronically driven truck gauge that includes an electronic water temperature sensor which reads and displays your truck’s coolant temperature from 100° to 280° Fahrenheit. This water temp gauge allows you to keep a close eye on your engine's coolant temperature, ensuring that it does not overheat which could result in major engine damage.
You asked for it and we listened! MaxTow’s Black & Blue Double Vision™ Gauge Series features a black gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2-1/16” (52mm) gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This water temperature gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!
Experience the difference with MaxTow's temperature sensors and wiring harnesses, now featuring new and improved waterproof connectors. These upgraded connectors have been designed to create an even stronger link between your sensor and gauge. They also offer true plug-and-play connectivity, making the installation process easy. These durable and reinforced harnesses will provide a strong, long lasting connection that ensures your wiring harnesses are around as long as your truck. Each temperature gauge features a 1/8-27 NPT sensor with waterproof connector, 9’ sensor harness with waterproof connector and a 5’ power harness. Each purchase includes mounting hardware, installation instructions, free lifetime technical support and a one year limited warranty. Get ready to hit the road and Tow to the Max™!
Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.
- 2-1/16" (52mm) Black Face Gauge with a Magnified Lens
- Water Temperature Reading from 100° to 280° Fahrenheit
- 1/8-27 NPT Temperature Sensor with Waterproof Connector
- Double Vision Display Feature with Analog and Digital Readings
- Blue LED Through Dial Lighting with a Red Illuminated Needle
- Daytime Dimming Mode with 3 Customizable Brightness Settings
- Nighttime Dimming Mode with 3 Customizable Brightness Settings
- 9' Sensor Wire Harness with Waterproof Connector
- 5' Power Wire Harness
- Gauge Depth Measures 1-5/16"
- Mounting Hardware
- Installation Instructions
- One Year Limited Warranty
- Free Lifetime Technical Support
